Product Files

See Directory Files Shapefile or OSL sections of this user guide for file naming examples.

The files below are included in the MultiNet® Shapefile and OSL formats and are sorted here in alphabetical order by file identifier. Most file identifiers are linked to brief descriptions of the files in this document section.

See category names under the Category column in the table below to find the matching categories in the MultiNet® Shapefile or OSL Format Specifications documents for the record layouts for each file See also the MultiNet® Oracle & Shapefile Relational Data Model included in your delivery.

Table 1. Shapefile File Index - 1 of 2
CATEGORY FILE NAME FEATURE TYPE FILE IDENTIFIER
Streets Street 0 (streets with FRC = 0) line 00
Streets Street 0 (streets with FRC = 1) line 01
Streets Street 0 (streets with FRC = 2) line 02
Streets Street 0 (streets with FRC = 3) line 03
Streets Street 0 (streets with FRC = 4) line 04
Streets Street 0 (streets with FRC = 5) line 05
Streets Street 0 (streets with FRC = 6) line 06
Streets Street 0 (streets with FRC = 7) line 07
Streets Street 0 (streets with FRC = 8) line 08
Roads, Ferries, Address Area Level 2 Roads table 2r
Administrative Areas Order 0 area a0
Administrative Areas Order 1 area a1
Administrative Areas Order 2 area a2
Administrative Areas Order 3 area a3
Administrative Areas Order 4 area a4
Administrative Areas Order 5 area a5
Administrative Areas Order 6 area a6
Administrative Areas Order 7 area a7
Administrative Areas Order 8 area a8
Administrative Areas Order 9 area a9
Streets Address Areas area aa
Streets Address Area Extended Attriburtes table aaea
Streets Address Area Names table aanm
Roads, Ferries, Address Area Address Area Boundary Element Belonging to Address Area table ab
Administrative Areas Administrative Area Structure Definitions table ad
Administrative Areas Administrative Area Attributes Extended table ae
Administrative Areas Area Replaced by Index Area table ai
Administrative Areas Administrative Area Names table an
Administrative Areas Extended Attribute table for Composite Attributes table axas and axav
Administrative Places Administrative Places area ap
Structures Area Structures area as
Built-up Areas Built-up Area in Named Area table ba
Built-up Areas Built-up Area Extended Attributes table be
Administrative Areas Boundary Line line bl
Built-up Areas Built-up Area Names table bn
Built-up Areas Built-up Areas area bu
Roads, Ferries, Address Area Census Enhanced Geocoding Attributes table cegc
Roads, Ferries, Address Area Center Point of Freeway point cf
Conversion Records Conversion Records table cn
Extra Attributes Extra Attributes table ea
Administrative Places Administrative Place Extended Attributes table ep
Streets Ferry line fe
Roads, Ferries, Address Area Geocode line gc
Roads, Ferries, Address Area Intersection Index table ig
Roads, Ferries, Address Area Intermediate House Numbers table ih
Roads, Ferries, Address Area Intersections table is
Roads, Ferries, Address Area Intersection Names table isnm
Roads, Ferries, Address Area Junction point jc
Roads, Ferries, Address Area Junction Extended Attributes table jcea
Land Use and Land Cover Land Cover area lc
Roads, Ferries, Address Area Lane Direction Information table ld
Roads, Ferries, Address Area Lane End table le
Roads, Ferries, Address Area Direction of Traffic Flow for Lane table lf
Roads, Ferries, Address Area Lane Type Information table li
Roads, Ferries, Address Area Lane Divider Information table ll
Roads, Ferries, Address Area Lane Connectivity Information poiny ln
Roads, Ferries, Address Area Lane Connectivity Path table lp
Structures Line Structures line ls
Roads, Ferries, Address Area Time Domains for Direction of Traffic Flow table lt
Land Use and Land Cover Land Use area lu
Land Use and Land Cover Land Use and Land Cover Extended Attributes table lxea
Land Use and Land Cover Land Use and Land Cover Names table lxnm
Roads, Ferries, Address Area Maneuvers point mn
Roads, Ferries, Address Area Maneuver Path Index table mp
Extra Attribute Tables Names table nm
Administrative Places Administrative Place Names table np
Roads, Ferries, Address Area Network line nw
Roads, Ferries, Address Area Network Extended Attributes table nwea
Other Named Areas Census Tract (U.S. only) area oa01
Other Named Areas Census Block Group (U.S. only) area oa02
Other Named Areas Census Blocks (U.S. only) area oa03
Other Named Areas Census Urbanized Areas area oa04
Other Named Areas Core Based Statistical Areas (U.S. only) area oa05
Other Named Areas Index Areas area oa06
Other Named Areas Urban Agglomeration area oa07
Other Named Areas Native Reservation area oa08
Other Named Areas Special Charge Area area oa09
Other Named Areas Neighborhood area oa10
Other Named Areas Low Emission Zone area oa11
Other Named Areas Other Area Extended Attributes table oaea
Other Named Areas Other Area Names table oanm
Administrative Areas Official Languages table ol
Roads, Ferries, Address Area Postal Code Information on Transportation Element table pc
Roads, Ferries, Address Area Postal Code Name Information table pcnm
Postal Districts Postal Districts area pd
Postal Districts Postal Districts Extended Attributes table pdea
Postal Districts Postal District Names table pdnm
Points of Interest Points of Interest point pi
Points of Interest Extended Attributes Table for Composite Attributes table pias, piav
Points of Interest Points of Interest Extended Attributes table piea
Points of Interest Points of Interest Names table pinm
Roads, Ferries, Address Area Lane Dependent Toll Payment Method table pm
Administrative Places Place Within Place Relation table pp
Points of Interest Service POI Belonging to Service POI table pr
Structures Point Structures point ps
Roads, Ferries, Address Area TMC Information Along Road Element table rd
Land Use and Land Cover (Building) Reference Point point rf
Land Use and Land Cover (Building) Reference Point Name table rfnm
Roads, Ferries, Address Area Route Numbers table rn
Table 2. Shapefile File Index - 2 of 2
CATEGORY FILE NAME FEATURE TYPE FILE IDENTIFIER
Railways Railways line rr
Railways Railway Extended Attributes table rrea
Railways Railway Names table rrnm
Roads, Ferries, Address Area Restrictions table rs
Points of Interest Service In Named Area table sa
Roads, Ferries, Address Area Official Street Codes table sc
Structures Structure Transportation Elements Relation table se
Roads, Ferries, Address Area Signpost point sg
Roads, Ferries, Address Area Signpost Information table si
Roads, Ferries, Address Area Speed Restriction per Lane table sl
Centers of Settlements Centers of Settlements point sm
Centers of Settlements Centers of Settlements Extended Attributes table smea
Centers of Settlements Centers of Settlement Names table smnm
Roads, Ferries, Address Area Signpost Path Index table sp
Roads, Ferries, Address Area Speed Restrictions table sr
Roads, Ferries, Address Area Speed Restriction Time Domain table st
Structures Structure Extended Attributes table sxea
Structures Structure Names table sxnm
Roads, Ferries, Address Area Transportation Element Belonging to Area table ta
Roads, Ferries, Address Area TMC Location Index table tc
Roads, Ferries, Address Area Time Domains table td
Roads, Ferries, Address Area TMC Path Index table tg
Roads, Ferries, Address Area TMC Path Location Index point ti
Roads, Ferries, Address Area TMC Location table tl
Roads, Ferries, Address Area Tourist Roads table to
Roads, Ferries, Address Area TMC Path table tp
Roads, Ferries, Address Area Traffic Sign point ts
Roads, Ferries, Address Area Traffic Sign Along Road Element table tt
Points of Interest Vicinity Relation table vr
Water Areas/Lines Water Areas area wa
Water Areas/Lines Water Lines line wl
Water Areas/Lines Water Areas/Lines Extended Attributes table wxea
Water Areas/Lines Water Areas/Lines Names table wxnm
Extra Attributes XML Object Reference table xo

Shapefile & Oslfile Data Model

To understand how the various Shapefile files are linked and inter-related, refer to the MultiNet® Oracle & Shapefile Relational Data Model included in your delivery. The following explains the meaning of the possible relations between tables indicated by relational arrows in the Shapefile Data Model.

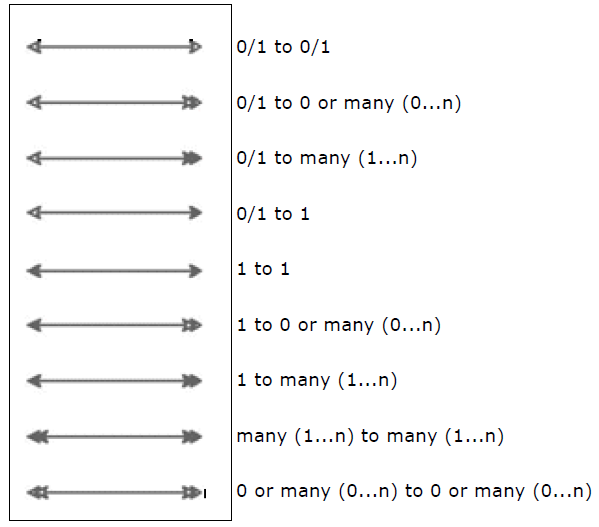

Figure: Relational Arrows

Example: Consider the Relation between the Signpost Table (sg) and the Signpost Information Table (si):

Figure: Signpost Table and Signpost Information Relation

The above relation means that every element of sg is related to multiple elements in si, and every element in si is related to exactly one element in sg. In other words, each Signpost can contain one or more sections of information: an airport pictogram and a parking pictogram. Each pictogram is a different record in si. However, each pictogram in si refers to exactly one Signpost.

File Definitions

Brief descriptions of MultiNet® Shapefile files are provided in this user guide. File identifiers are in parenthesis next to the file names. Attribute descriptions are included in the MultiNet® Shapefile Specification document on this documentation DVD. Note that in Shapefile and OSL formats:
  • If a feature attribute is not captured for a geographical area, the field in the .dbf file is empty.
  • If an entire feature is not captured for a geographical area (e.g., *a3, *a4 for the United States), the files are delivered, but will contain no data.
  • Extended file field definitions below appear under <FIELD NAME> text.
